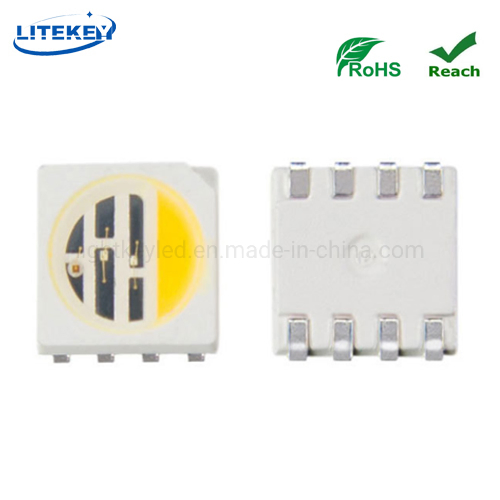

Expert Manufacturer of RGBW SMD LED 5050 0.2W RoHS Compliant

Still deciding? Get samples of $ !
Order Sample

Product Description

■ Basic Information
Model NO.
LLS5050PLC8RGBW
Beam Angle
120°
Emitting Color
RGBW
Base Material
Copper
LED Chips
Epistar
Power
0.2W
Life
50000h
Certification
RoHS, Reach
Specification
5.0mmX5.0mmX1.6mm
Origin
China
■ Key Features
High Reliability
Low Operating Voltage
Low Power Consumption
Long Operational Life
PB Free (RoHS Compliant)
RGBW 4-in-1 Integration
■ Technical Parameters
P/N Power Color Forward Voltage (V) Forward Current (mA) WLP (nm/K) Luminous Flux (lm)
LLS5050PLC8RGBW-0.2W 0.2W Red 2.0-2.4V 20mA 620-630nm 2-4lm
Green 2.8-3.2V 515-530nm 5-8lm
Blue 3.0-3.4V 455-465nm 1-2lm
White 2.8-3.4V 2000-10000K 6-10lm
■ Product Display

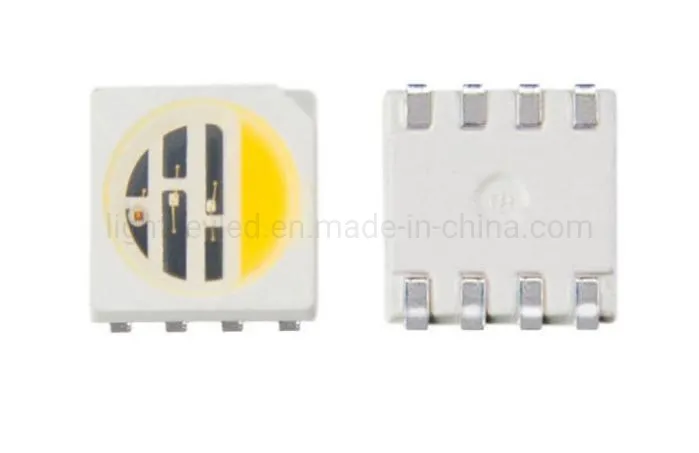

RGBW SMD LED 5050

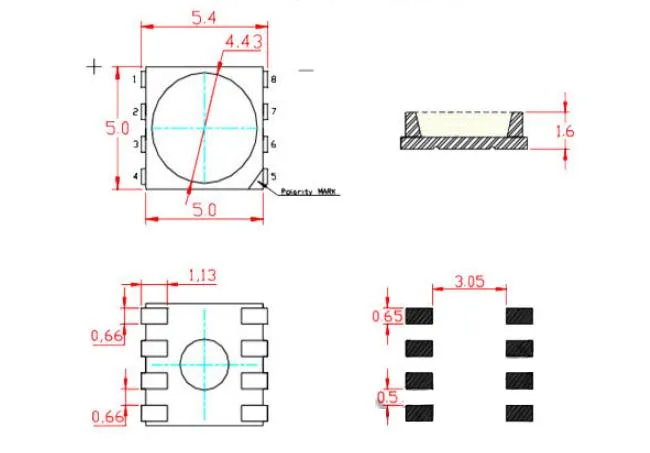

Package Dimensions
■ Applications
  • Indoor Illumination
  • Automotive Lighting
  • Back Lighting
  • General Purpose Lighting
■ Packaging & Quality Control

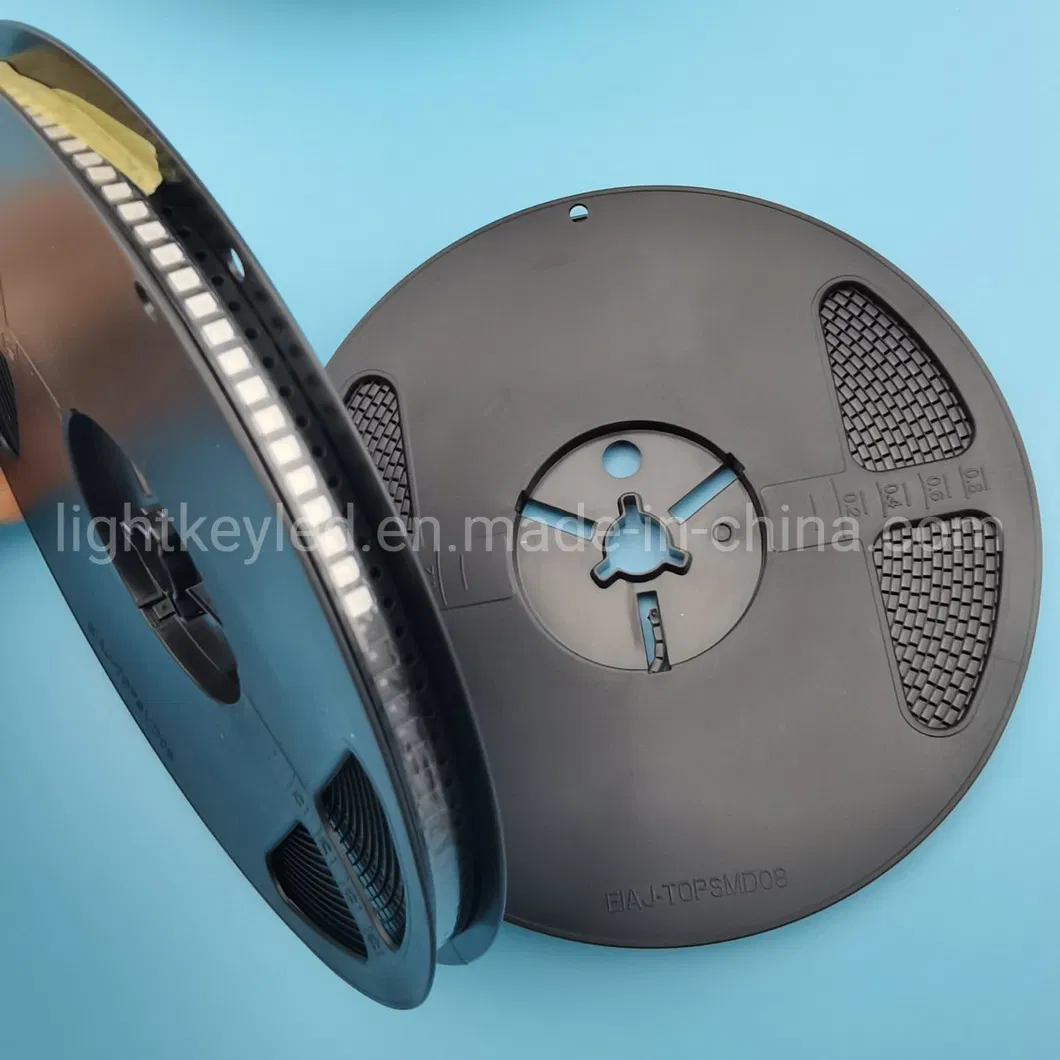

Packaging 1

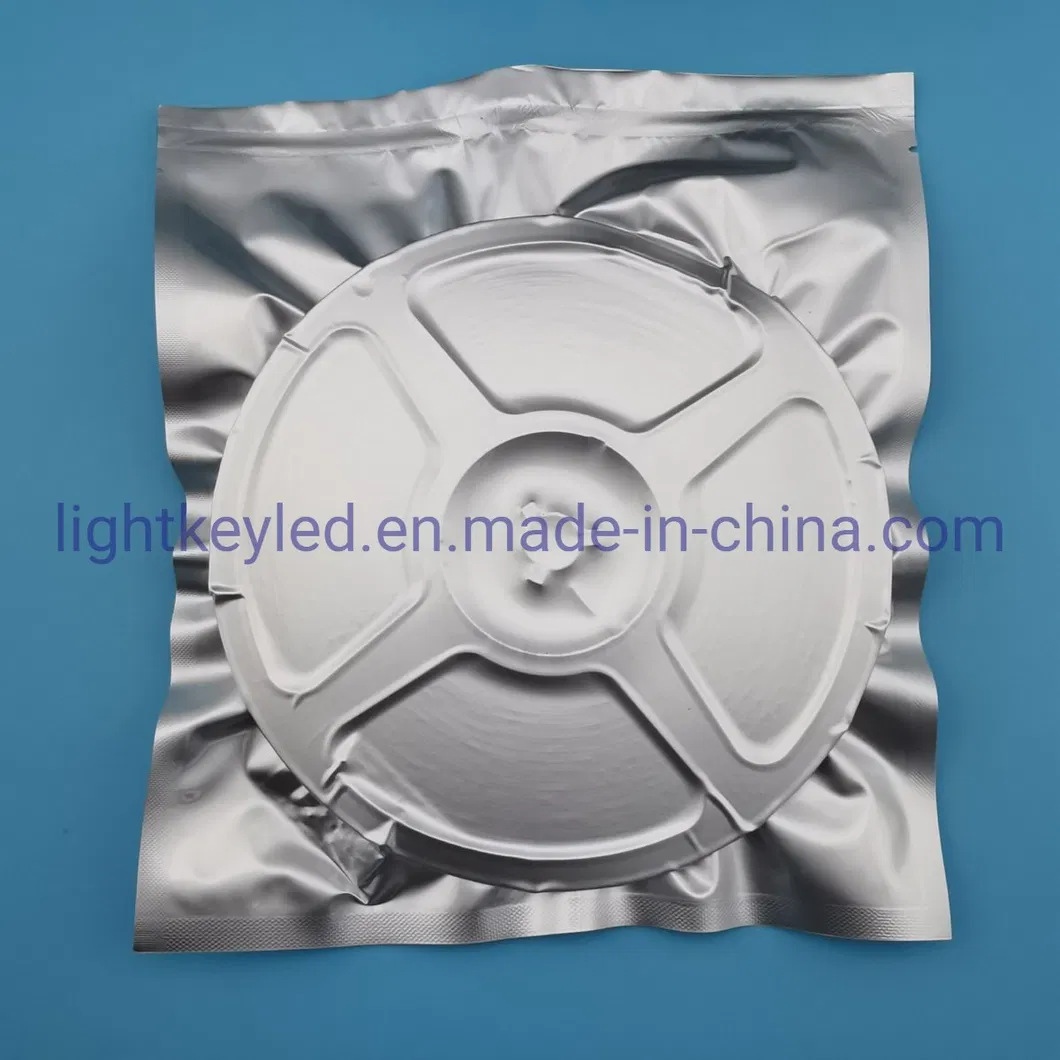

Packaging 2

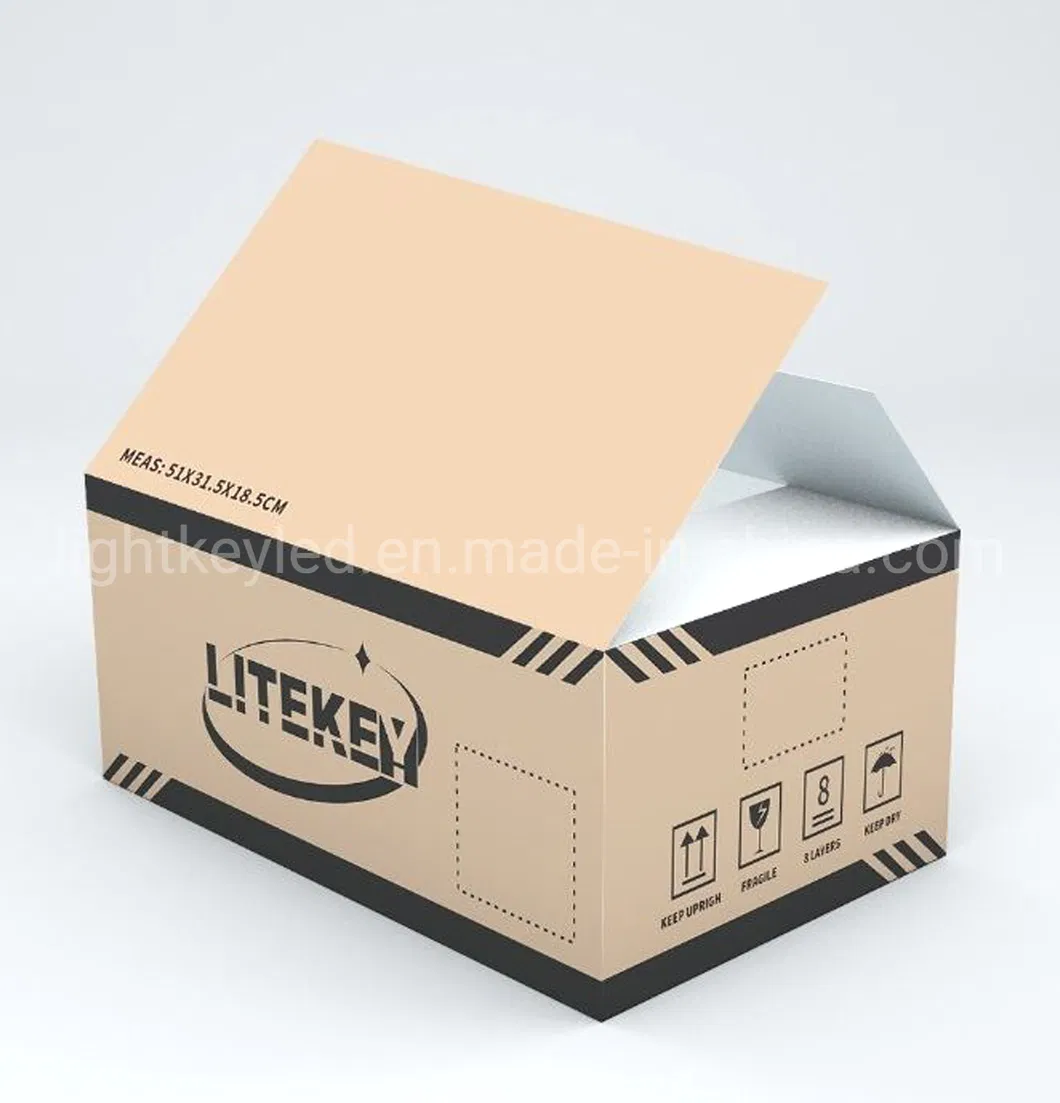

Packaging 3

Quality Assurance System

QC System
■ Factory Overview

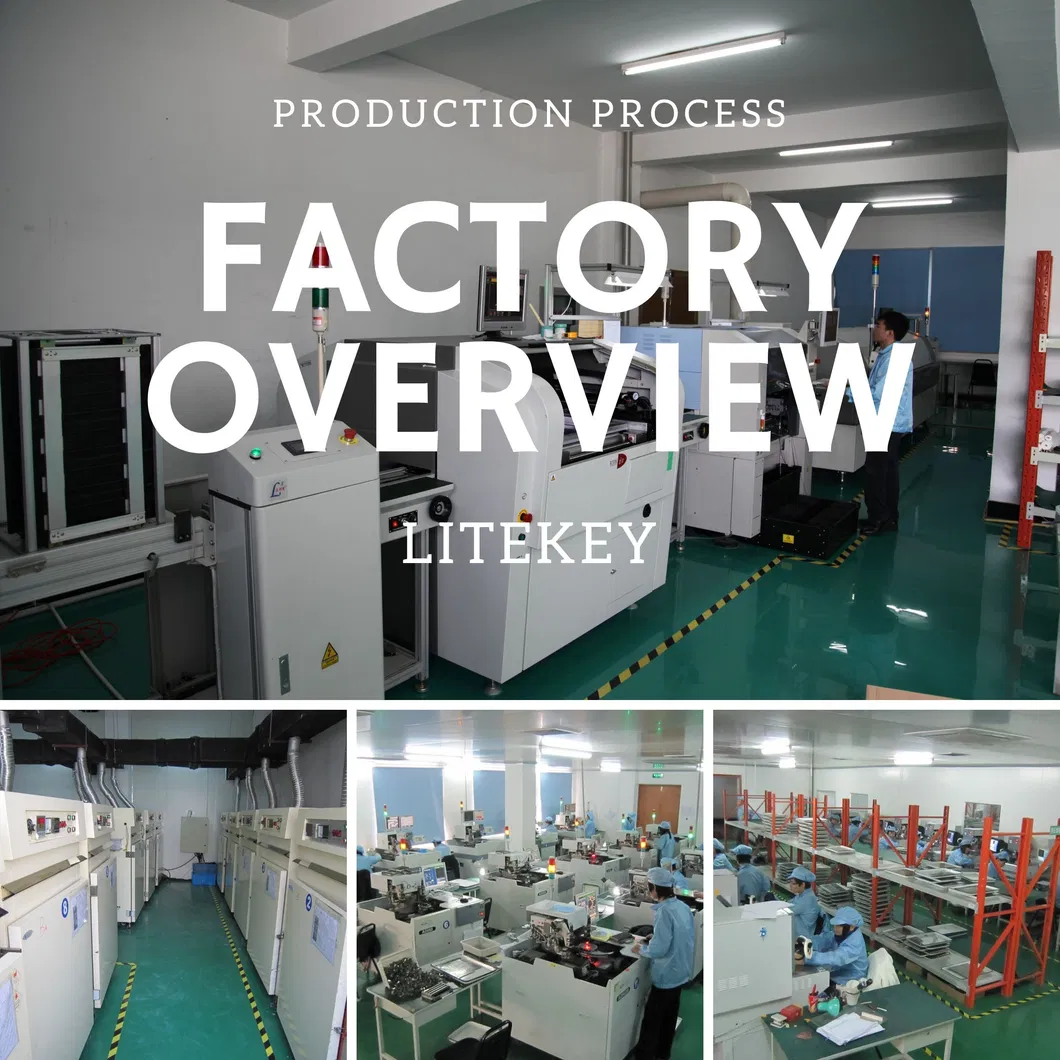

Production Process

Premium Raw Materials:

  • Famous Brand & Big Size chips
  • Pure (99.99%) Gold Wire
  • Copper Frame
  • Advanced Optical-Grade Epoxy
■ Frequently Asked Questions
Q1: What is the lifespan of the 5050 RGBW SMD LED?
The LED is designed for high durability with a lifespan of up to 50,000 hours under standard operating conditions.
Q2: What are the benefits of using a copper frame and gold wire?
The use of 99.99% pure gold wire and a copper frame ensures superior electrical conductivity and excellent heat dissipation, leading to higher light efficiency and reliability.
Q3: Is this product environmentally friendly?
Yes, our SMD LEDs are PB-free and fully compliant with EU RoHS and Reach certifications.
Q4: Can these LEDs be used for outdoor applications?
While widely used for indoor illumination and automotive lighting, they feature anti-UV properties and high moisture resistance, making them suitable for various environments.
Q5: What is the beam angle of the LLS5050 series?
The standard beam angle for this model is 120°, providing a wide and even light distribution.
Q6: Do you offer customized designs or samples?
Yes, customized designs based on specific demands are available, and we accept sample orders for quality evaluation.
